Description

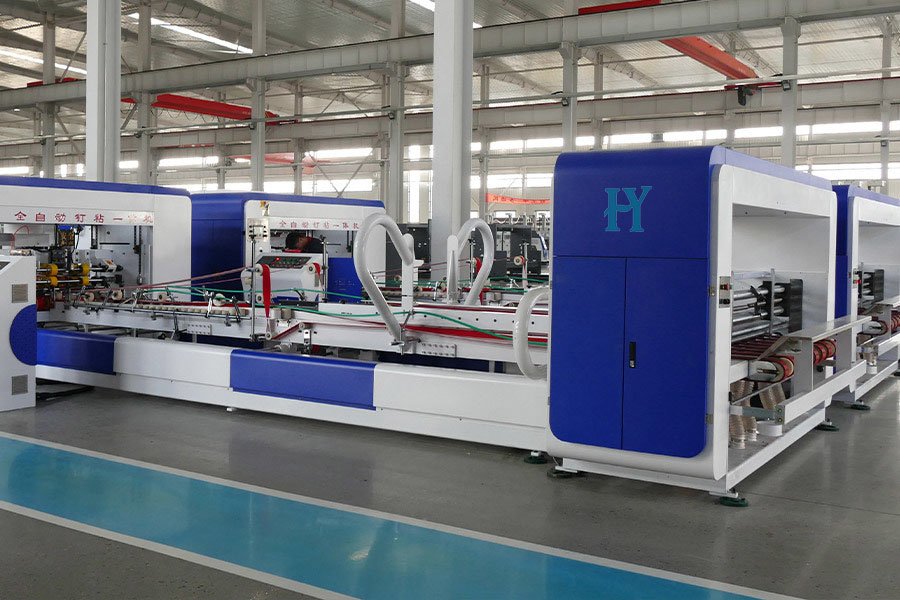

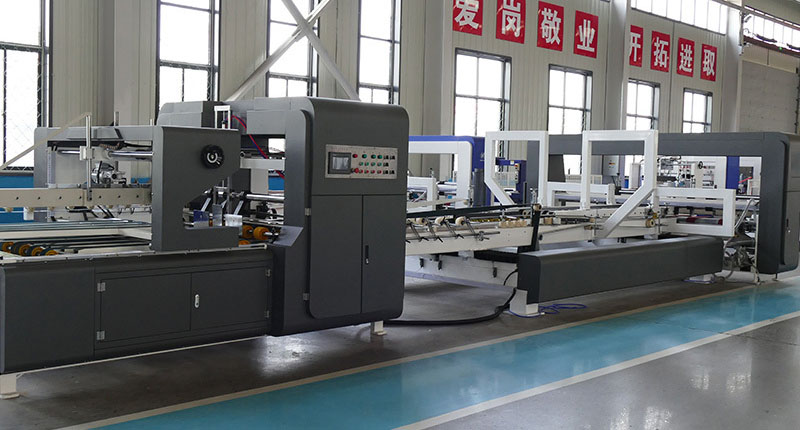

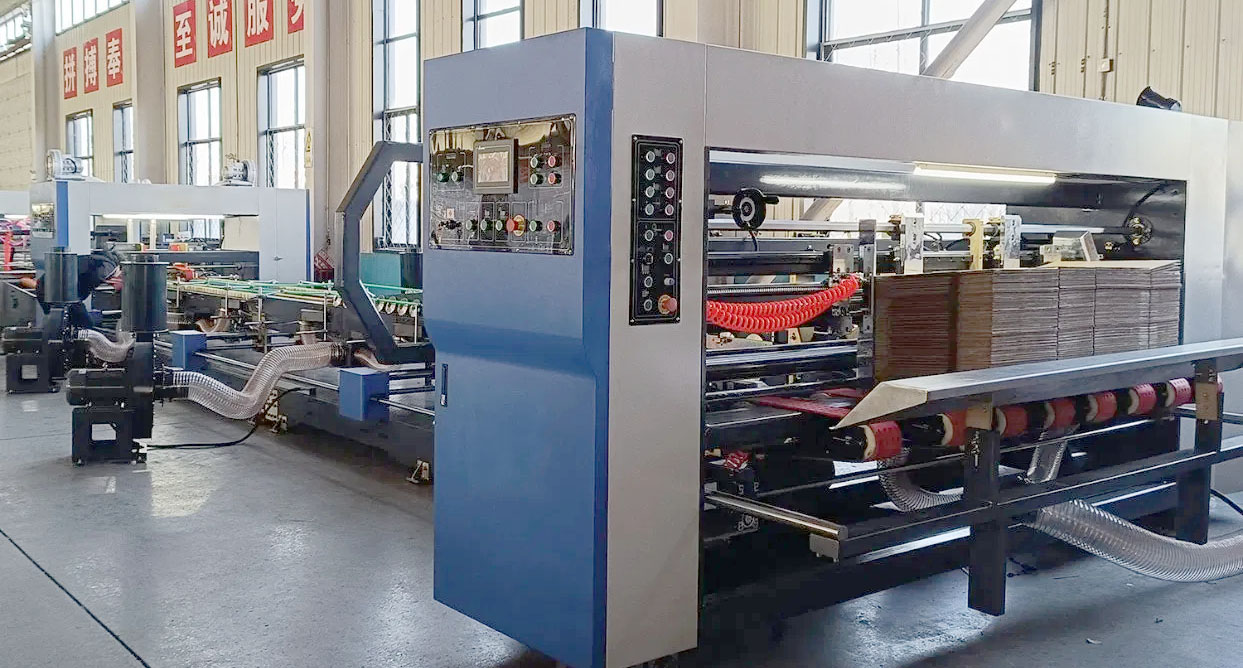

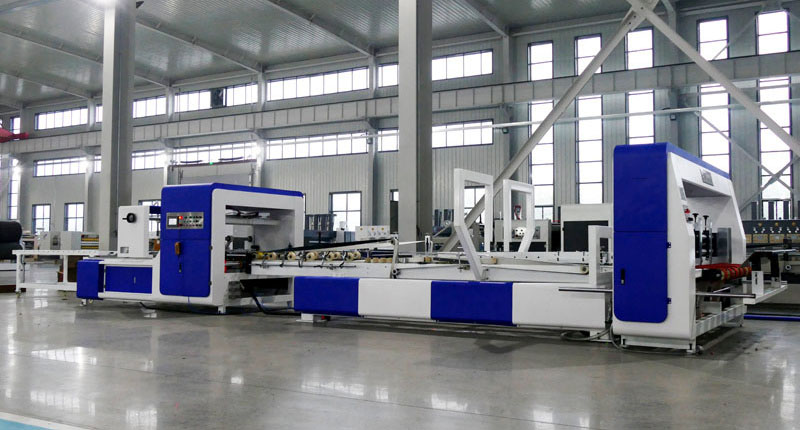

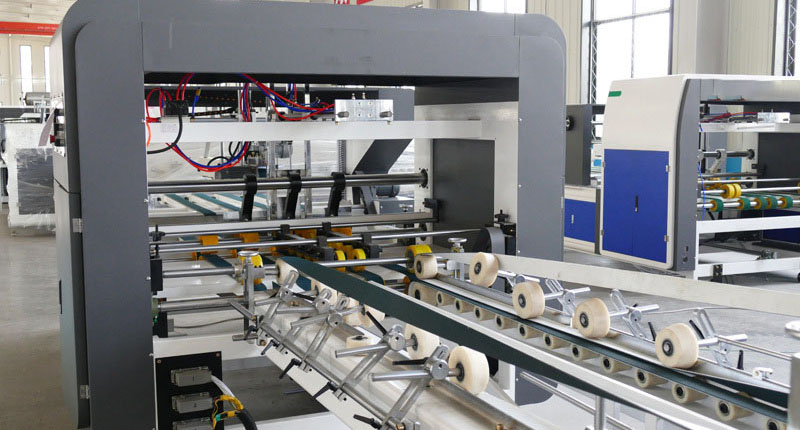

This heavy-duty carton box gluing stitching machine is engineered for high-speed,
multi-specification packaging lines. Built on a heavy-duty plate-finished frame,
the entire structure is exceptionally stable,
minimizing vibration and ensuring long-term reliability.
One-Key Adjustment for Fast Changeovers
Unlike conventional equipment, this carton box gluing stitching machine features an intelligent one-key adjustment function.
Length, width, and height parameters can be input directly,
allowing rapid size switching without complex manual tuning—ideal for production environments
handling multiple carton specifications.
High-Precision Paper Feeding & Alignment
The paper feeding section adopts leading-edge adsorption technology combined with
a linear slide rail structure for left and right baffles. A built-in side alignment function ensures consistent paper positioning.
The left and right arms, baffles, and gluing system move synchronously with transverse motion data,
delivering the accuracy required for a professional carton box gluing stitching machine.
Advanced Folding & Independent Correction
The folding unit uses adsorption traction and servo direct drive to prevent lateral cardboard displacement.
A multi-channel line forming device guarantees superior molding for heavy packaging.
To meet diverse forming requirements,
left and right independent correction devices can be set separately,
making this carton box gluing stitching machine adaptable to various box types.

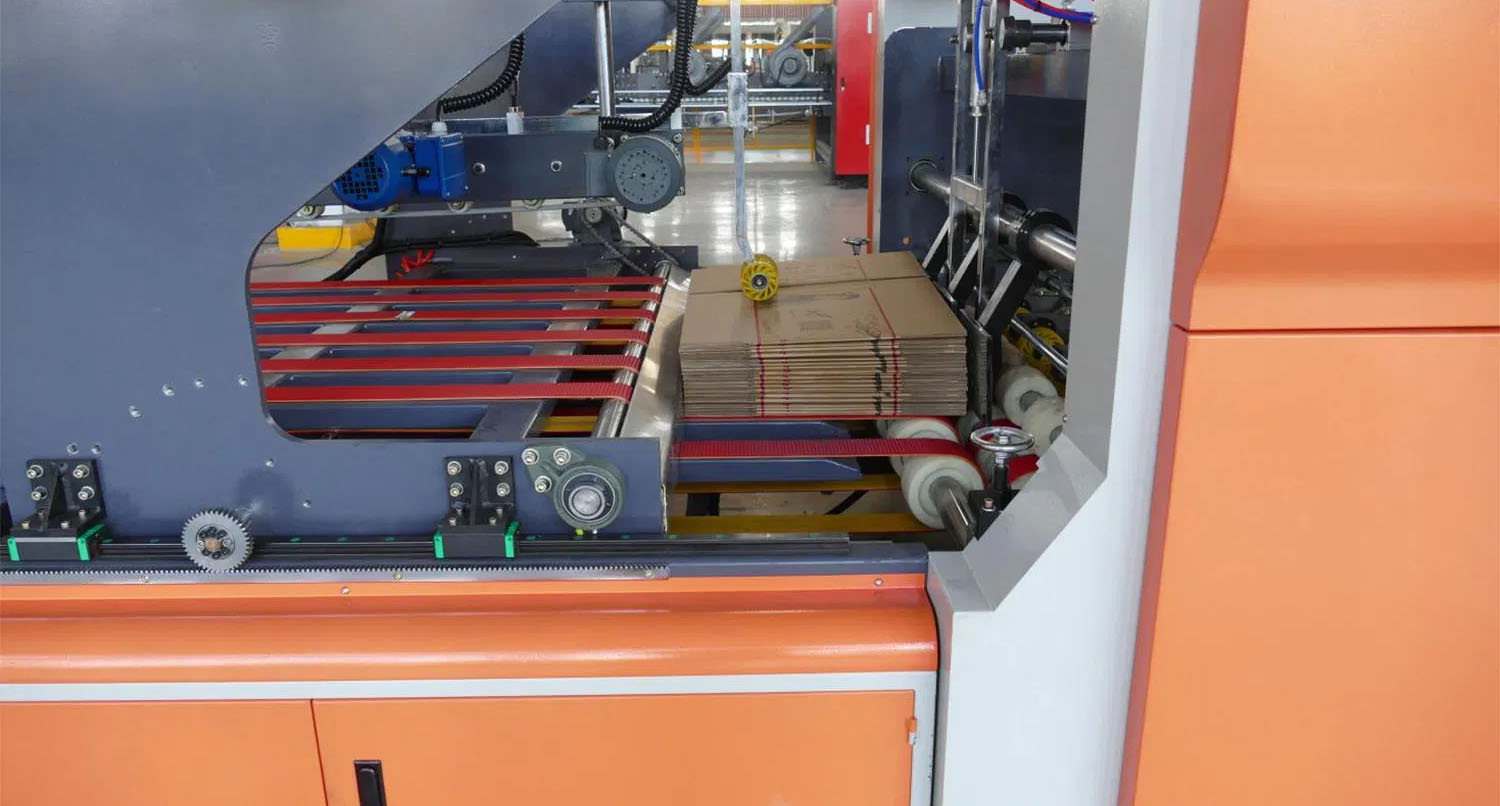

Automatic Counting & Pneumatic Stacking
The output section features automatic counting and pneumatic stacking.
Stack quantity is freely programmable,
and push-out timing can be adjusted to match downstream processes—adding intelligent automation
to your carton box gluing stitching machine.
Electric Paper Press & Independent Frequency Drives
The paper press uses electric lift adjustment,
ensuring consistent bonding time and preventing unglued flaps.
Paper feed and output each have independent frequency conversion speed regulation,
allowing operators to match production speed based on carton size and stack height.
This flexibility makes this carton box gluing stitching machine suitable for a wide range of carton specifications.
Effortless Electric Adjustments
Both the paper trolley and paper press wheel are equipped with electric distance adjustment,
saving time and reducing manual effort—further enhancing
the user-friendly design of this carton box gluing stitching machine.
| Model | 1224Z(Heavy duty) | 1630Z( Heavy duty ) |
| Min. Folding spacing | 350 | 400 |
| Sheet side | Min 250 Max 800 | Min 230 Max 1000 |
| Sheet reverse side | Min 100 Max 800 | Min 170 Max 1100 |
| Folding accuracy | ±1.5 | ±2 |
| Min. Feeding height | 250 | 350 |
| Speed |
Beyond delivering a high-performance carton box gluing stitching machine, we are committed to providing a full range of services that ensure smooth operation, fast changeovers, and long-term reliability. From pre-sale consultation to after-sales support, we stand by your production line.
We help you select or customize the right machine based on your carton specifications, production volume, and layout requirements. Length, width, height, stack height, and output speed can all be pre-configured to match your unique packaging needs.
Our team provides on-site or remote assistance in setting up one-key adjustment parameters for your most frequently used carton sizes. This minimizes downtime during changeovers and allows your operators to run multiple box specifications with ease.
We offer professional installation and commissioning services to ensure that every section—from paper feeding and folding to gluing and stacking—works in perfect synchronization. The entire machine is verified for structural stability and forming accuracy before handover.
We provide comprehensive training for your production team, covering:
Daily operation of the carton box gluing stitching machine
How to use independent correction devices (left/right)
Frequency conversion speed regulation for feed and output sections
Electric adjustment of paper trolley and press wheel
We stock and supply original spare parts, including adsorption belts, servo drive components, baffle slide rail parts, gluing system accessories, and pneumatic stacker components. Fast dispatch ensures minimal production interruption.
Most machine adjustments and troubleshooting can be performed remotely via video call or data connection. Our engineers can guide your team through parameter resets, correction device tuning, and stacking logic adjustments in real time.
For customers with high-volume production, we offer annual maintenance contracts, including:
Scheduled inspection of the heavy-duty plate-finished frame
Calibration of left/right independent correction devices
Lubrication and wear-part replacement
Full system performance check
Already have a machine? We provide retrofit services to add one-key adjustment, independent correction, or electric lift paper press functionality to existing equipment, extending the life and capability of your production line.
